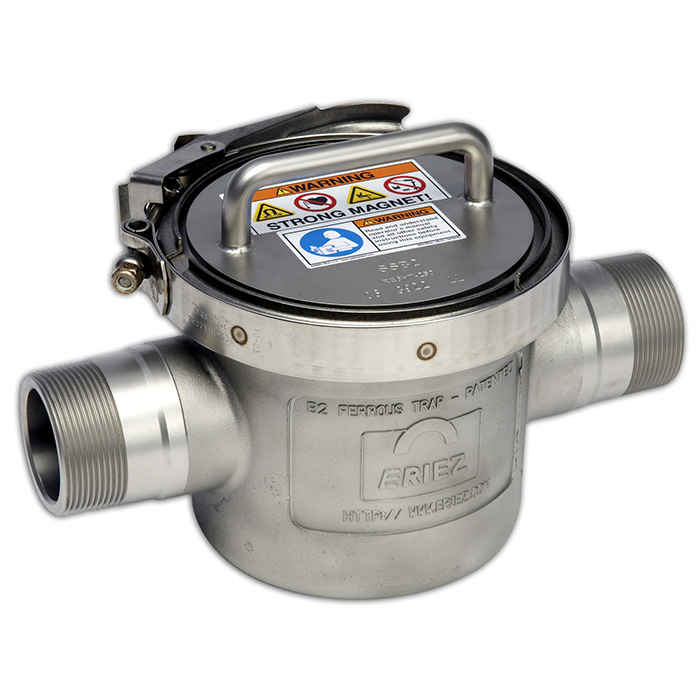

Model B Trap Magnets
These powerful permanent magnetic traps provide protection for liquid lines and sensitive processing equipment such as pumps. They preserve product purity by removing small particles of magnetic scale, rust and fine iron contamination.
The magnetic element, consisting of a group of magnetic tubes, is arranged to cause the material flow entering the body to impinge against the tubes and filter through the magnetic field. This arrangement takes advantage of the material change in direction and the difference in inertia between the unwanted iron and the material carrying it. The magnetic circuit is designed so the entrapped iron will cling to the downstream side of the tubes, which prevents iron particles from being washed off by the continuous flow of material.
Xtreme® Rare Earth (RE) Model B Traps from Eriez create a magnetic field up to 25 times the strength of conventional ceramic magnet material; they are designed to remove weakly magnetic or very fine iron contaminants. Built for durability, this model is rated up to 250°F, making it a reliable choice for a wide range of hot or heated applications.
Pipe Size | Part No. | Price | Material |
2 in (NPT) | 201508770G1 | $2,199 | Xtreme Rare Earth |
2 in (Ferrule) | 201508773G1 | $3,508 | Xtreme Rare Earth |
3 in (NPT) | 201508776G1 | $3,147 | Xtreme Rare Earth |
3 in (Ferrule) | 201508779G1 | $4,194 | Xtreme Rare Earth |
4 in (NPT) | 201508782G1 | $4,229 | Xtreme Rare Earth |
4 in (Ferrule) | 201508785G1 | $5,450 | Xtreme Rare Earth |

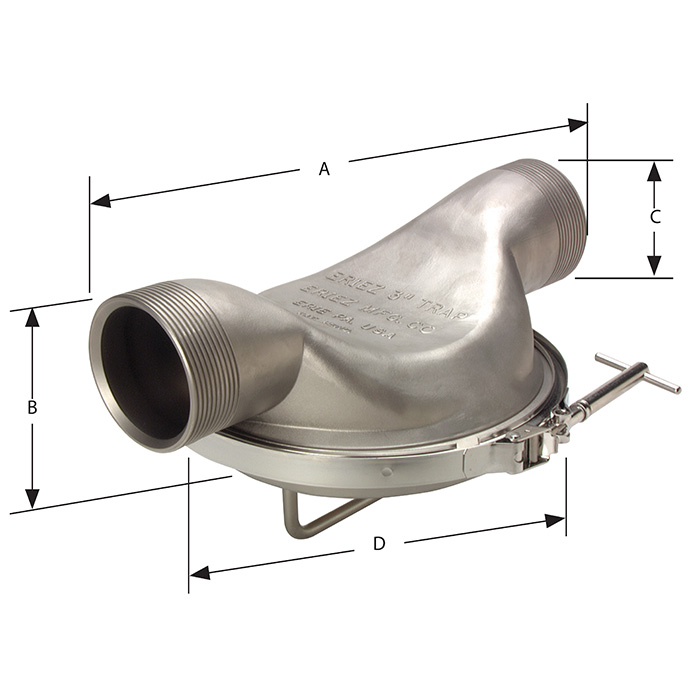

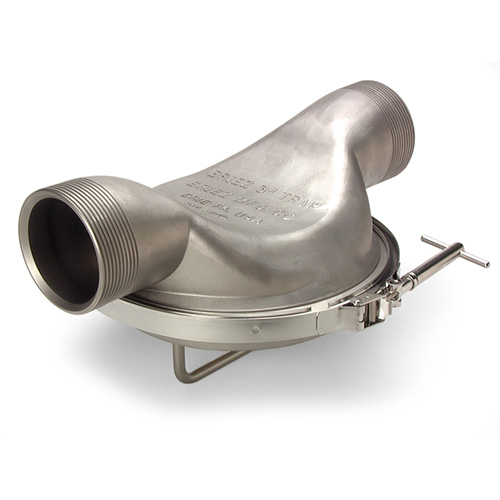

Model U
Model U Traps remove ferrous contamination from difficult–to–flow or chunky products like vegetables, salsa, or meat batters. The special body design of the Model U incorporates a gradually tapered transition that gently directs the product over a smooth magnetic surface. This design works well for applications where finger–style traps would plug due to large product size or where delicate products would break if forced against a baffle. Built for durability, this model is rated up to 250°F, making it a reliable choice for a wide range of hot or heated applications.
Line Size | Part No. | Price | Material |
3 in (Ferrule) | 146960 | $7,560 | Rare Earth |
4 in (Ferrule) | 146961 | $7,560 | Rare Earth |

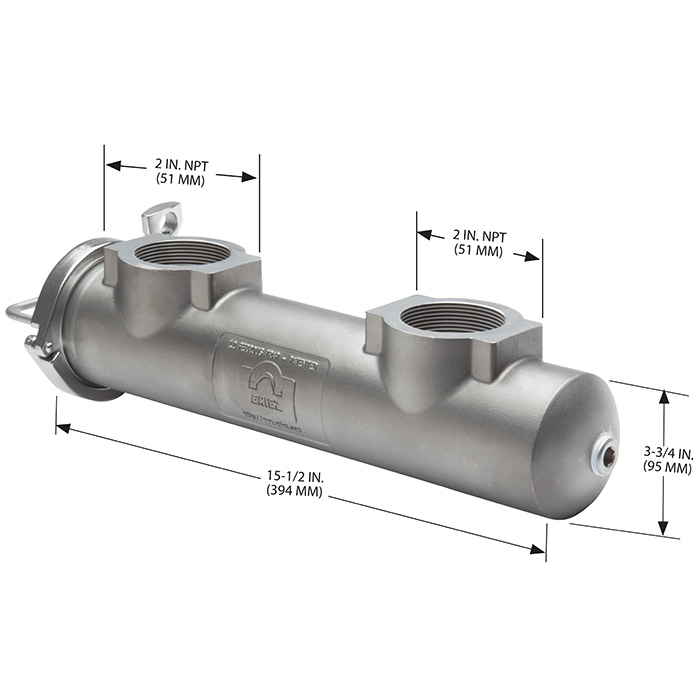

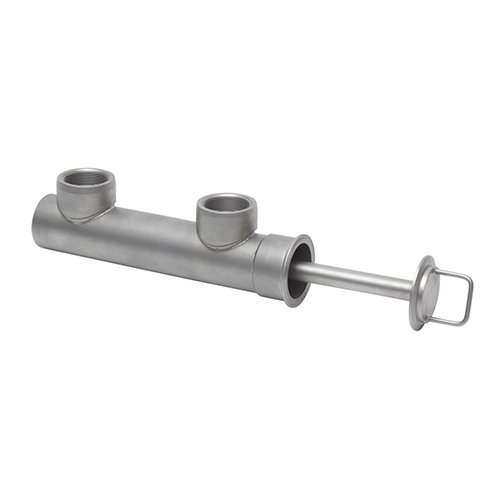

Model L
The Model L Trap has been designed to serve as an effective, low–cost, magnetic pipeline trap where operating conditions are not too severe. This unit is of 316 stainless steel construction capable of withstanding pressures up to 150 psi (10.5 kg/sq cm). It is built for 2–inch (51mm) pipelines; standard reducers can be used to adapt it to lines as small as 1/2–inch (13 mm). This model is rated up to 150°F, making it a reliable choice for heated applications.
Line Size | Part No. | Price | Material |
2 in | 201507127G2 | $1,884 | Ceramic (Model L) |
2 in | 201507127G1 | $2,482 | Rare Earth (Model L) |
