Description

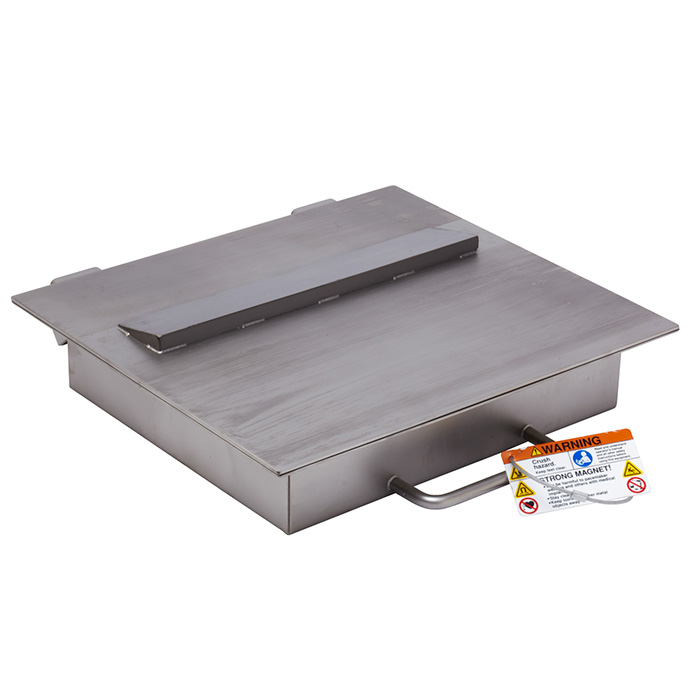

Ceramic Plate Magnets
Our most popular ceramic unit removes tramp metal from a variety of heavy duty applications. Our ceramic plate magnets creates a powerful magnetic field projecting 2–3″ (50–75 mm) into a burden to remove large tramp iron from product flows.
Plate Width | Part No. | Price | Material |
6 in | 135711P | $258 | Ceramic |
8 in | 135667P | $314 | Ceramic |
10 in | 135712P | $352 | Ceramic |
12 in | 135668P | $383 | Ceramic |
16 in | 135713P | $460 | Ceramic |
20 in | 135714P | $514 | Ceramic |
24 in | 135715P | $586 | Ceramic |

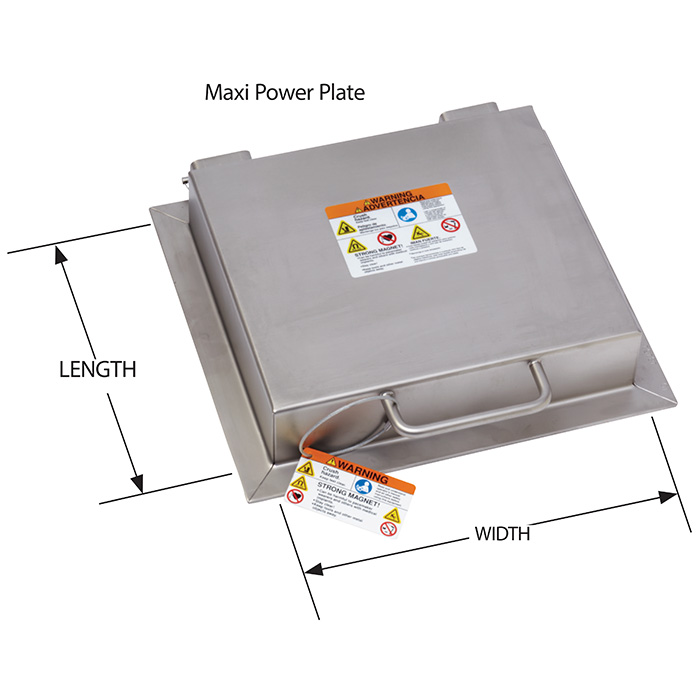

Maxipower Plate Magnets
This extra heavy-duty ceramic magnet incorporates 75% more magnet material in a thicker and longer plate so feed material is exposed to the magnetic field 40% longer than our next closest size. MaxiPower creates a deep magnetic field that will project 3–4″ (75–100 mm) into a burden to remove both small and large tramp iron.
Plate Width | Part No. | Price | Material |
8 in | 130108E | $672 | Maxipower |
10 in | 130110P | $783 | Maxipower |
12 in | 130112P | $861 | Maxipower |
14 in | 130114P | $1,057 | Maxipower |
Rare Earth Plate Magnets
Rare Earth Magnetic Plates are smaller than conventional magnets, but these magnets create a field so powerful that wash off is virtually eliminated. They are ideal for food and pharmaceutical applications where fine particles can contaminate products.
Plate Width | Part No. | Price | Material |
6 in | 129906P | $682 | Rare Earth |
8 in | 129908P | $834 | Rare Earth |
10 in | 129910P | $985 | Rare Earth |
12 in | 129912P | $1,137 | Rare Earth |
14 in | 129914P | $1,295 | Rare Earth |
18 in | 129918P | $1,551 | Rare Earth |
24 in | 129924P | $1,921 | Rare Earth |
Xtreme Rare Earth Plate Magnets
When deeper product depths and higher suspension heights are required, Xtreme Rare Earth Magnets provide maximum separation performance. Eriez Xtreme Rare Earth Permanent Plate Magnets are the strongest in the industry.
Plate Width | Part No. | Price | Material |
6 in | 135283P | $1,029 | Xtreme Rare Earth |
8 in | 135285P | $1,321 | Xtreme Rare Earth |
10 in | 135287P | $1,625 | Xtreme Rare Earth |
12 in | 135289P | $1,901 | Xtreme Rare Earth |
14 in | 135291P | $2,244 | Xtreme Rare Earth |
18 in | 135295P | $2,708 | Xtreme Rare Earth |
24 in | 135299P | $3,600 | Xtreme Rare Earth |
