Description

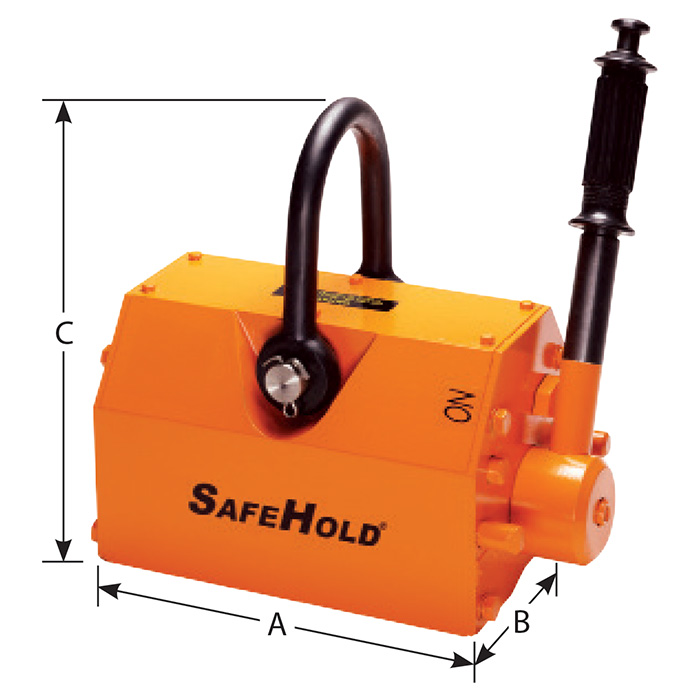

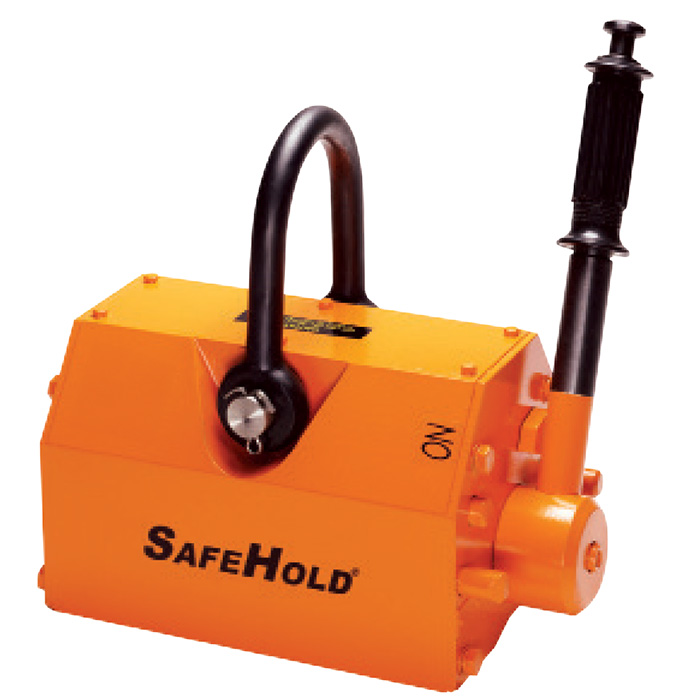

SafeHold RPL Series Lifting Magnets
Round or flat materials, manually activated
Lift, move or position round or flat materials with the same magnet. Specially designed poles on the RPL Series allow the user to lift round materials up to 1,250 pounds and flat materials up to 5,000 pounds.
Model | Lift Cap. (Flat/Round) | Part No. | Price |
RPL-2 | 250lbs./125lbs. | 165331E | $304 |
RPL-7 | 750lbs./375lbs. | 165332E | $625 |
RPL-15 | 1,500lbs./750lbs. | 165333E | $1,065 |
RPL-25 | 2,500lbs./1,250lbs. | 165334 | $2,048 |
RPL-50 | 5,000lbs./N/A | 165335 | $3,910 |

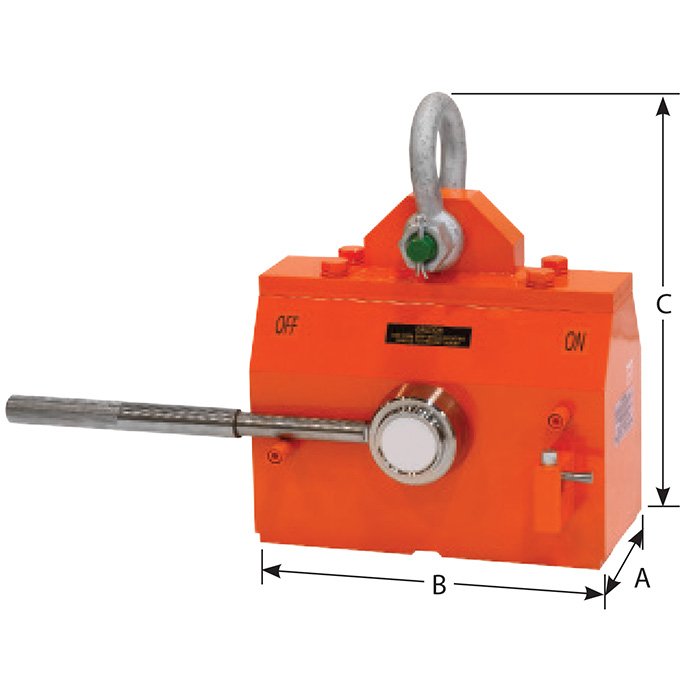

SafeHold XPL Series Lifting Magnet
Round or flat materials, manually activated
Though specifically designed to handle wide ranges of diameters on round materials, these powerful XPL Series of rare earth lift magnets are also capable of handling flat materials. Six models are available, with capacities up to 2,700 pounds on round material and 3,500 pounds on flat materials.
Model | Lift Cap. (Flat/Round) | Part No. | Price |
XPL-3/2 | 300lbs./200lbs. | 165336E | $895 |
XPL-6/4 | 600lbs./400lbs. | 165337E | $1,268 |
XPL-10/6 | 1,000lbs./600lbs. | 165338E | $1,587 |
XPL-17/12 | 1,700lbs./1,200lbs. | 165339E | $1,833 |
XPL-22/16 | 2,200lbs./1,600lbs. | 165340 | $2,464 |
XPL-35/27 | 3,500lbs./2,700lbs. | 165341 | $4,067 |

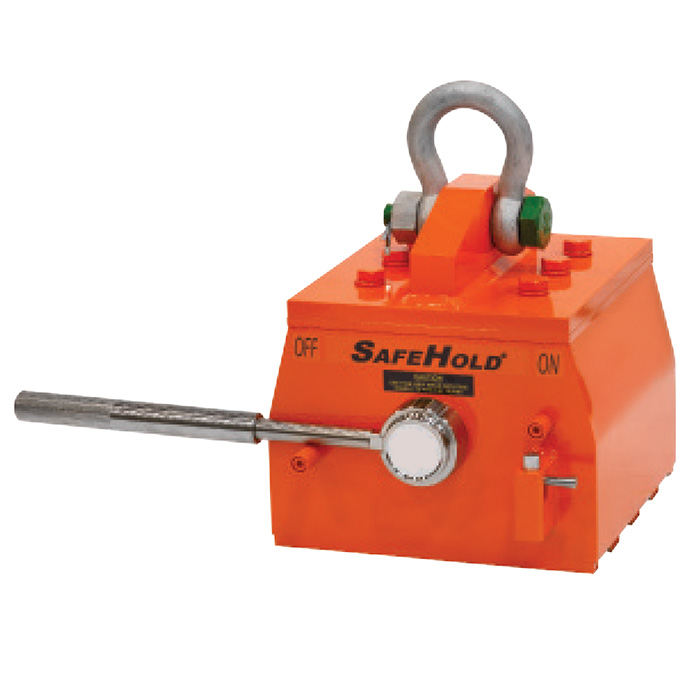

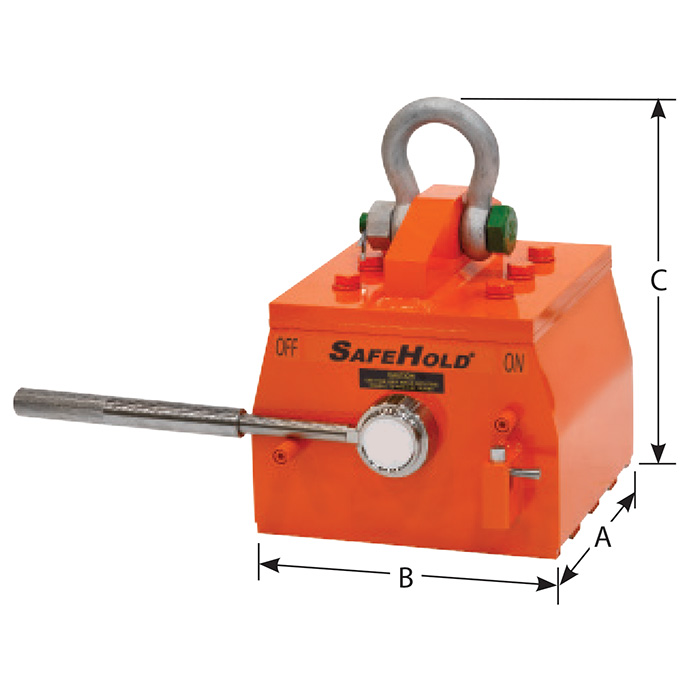

SafeHold EPL Series Lifting Magnets
Flat materials only, manually activated
The small, lightweight EPL Series is ideal for carrying semi-finished products with flat surfaces such as machine parts, press molds for forming, steel plate, etc. SafeHold® EPL Series permanent magnets turn on and off manually to provide smooth operation for hundreds of lifting and positioning applications. Maximum capacity on the EPL Series is 7,500 pounds.
Model | Lift Cap. (Flat/Round) | Part No. | Price |
EPL-4 | 450lbs./ N/A | 165342E | $1,096 |
EPL-28 | 2,800lbs./ N/A | 165343E | $2,397 |
EPL-55 | 5,500lbs./ N/A | 165344 | $4,489 |
EPL-75 | 7,500lbs./ N/A | 165345 | $6,952 |

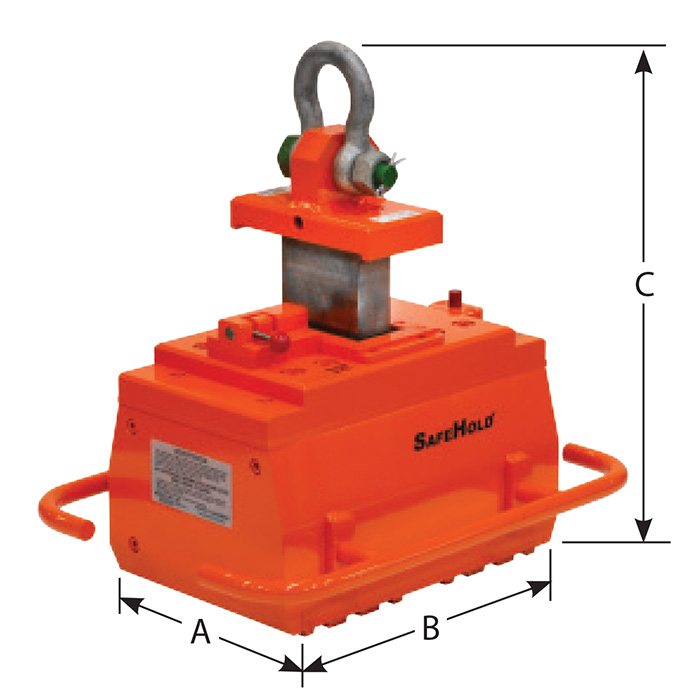

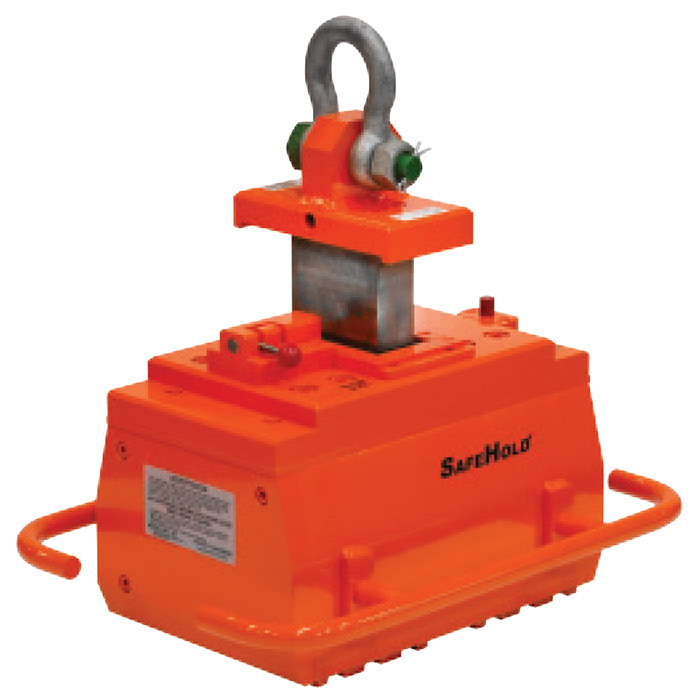

SafeHold APL Series Lifting Magnets
Flat materials only, automatically activated
The APL Series is ideal for loading and unloading flat steel sheets from anywhere that limits operator access, turning off and on automatically to provide smooth operation for hundreds of lifting-positioning applications. They can be used singly or in multiples on a spreader beam and require no manual magnet activation. Maximum capacity on the APL Series is 3,800 pounds.
Model | Lift Cap. (Flat/Round) | Part No. | Price |
APL-6 | 600lbs./ N/A | 165346 | $3,844 |
APL-11 | 1,100lbs./ N/A | 165347 | $4,377 |
APL-24 | 2,400lbs./ N/A | 165348 | $5,547 |
APL-38 | 3,800lbs./ N/A | 165349 | $6,393 |
