Grate-In-Housing

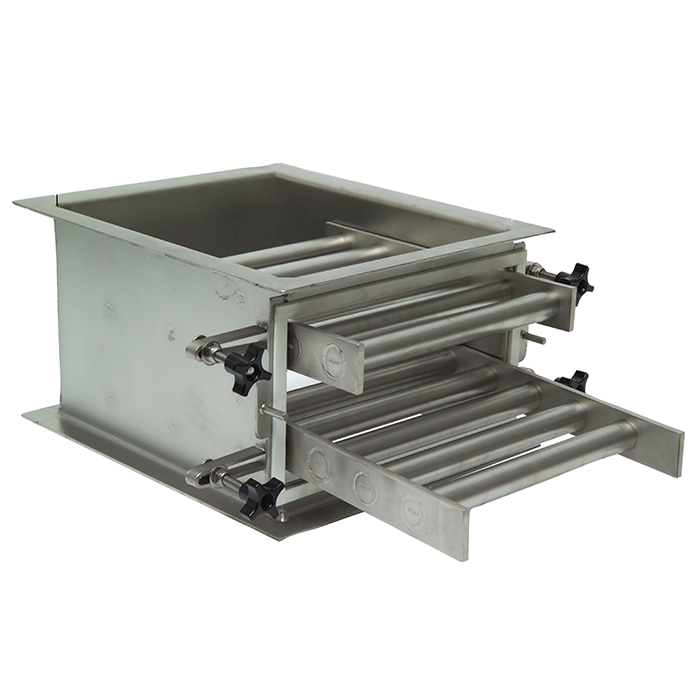

GRATE-IN-HOUSING

Tramp and fine iron removal in enclosed flow lines or at screen discharges is simplified by Eriez’ multi–bank grate magnet units built into convenient housings. These separators have a slide-bolt door front which makes the magnetic tubes readily accessible for cleaning. Two offset rows of ceramic or Xtreme Rare Earth tube magnets provide the ultimate protection against tramp metal contamination.

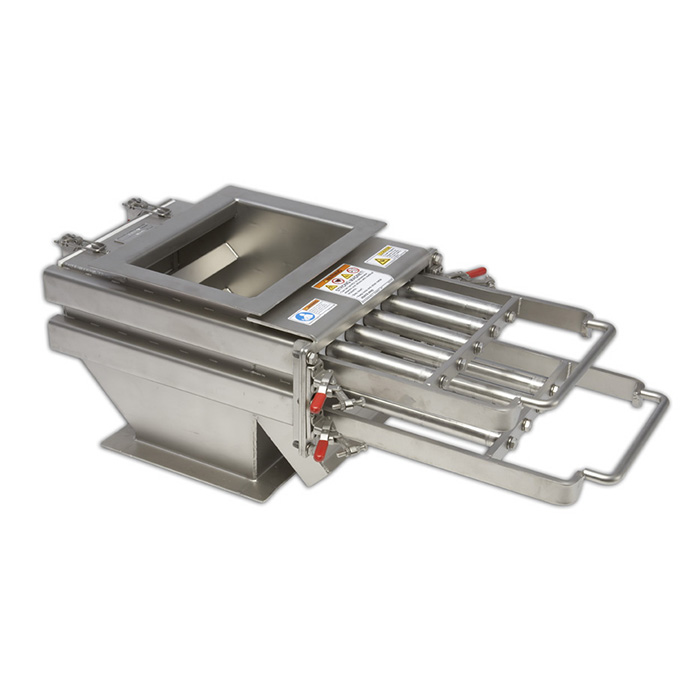

EASY-TO-CLEAN GRATE-IN-HOUSING

The Easy-To-Clean Grate-In-Housing provides quick removal of accumulated fine iron contamination. Simply slide the individual door fronts from the housing and the stainless steel tube scrapers remove accumulated metal contamination from the powerful Rare Earth tubes and it is discharged out the front of the housing. The cleaning cycle is reduced to only a few seconds with this push–pull operation.

Description

GRATE-IN-HOUSING

Grate WxL	Part No.	Price	Material
6-1/8 x 8-1/8 in	135723P	$825	Ceramic
8-1/8 x 10-1/8 in	135724P	$950	Ceramic
10-1/8 x 12-1/8 in	135725P	$1,100	Ceramic
6-1/8 x 8-1/8 in	150793P	$2,225	Xtreme Rare Earth
8-1/8 x 10-1/8 in	150794P	$3,450	Xtreme Rare Earth
10-1/8 x 12-1/8 in	150795P	$4,750	Xtreme Rare Earth

EASY-TO-CLEAN GRATE-IN-HOUSING

Grate WxL	Part No.	Price	Material
8.5 x 6 in	135706P	$4,375	Rare Earth
10.5 x 8 in	133816P	$5,250	Rare Earth
12.5 x 10 in	133828P	$6,225	Rare Earth

Additional information

Model	Grate-In-Housing, Easy-To-Clean
Strength	Ceramic, Rare Earth, Xtreme Rare Earth
Size	6-1/8in x 8-1/8in, 8-1/8in x 10-1/8in, 10-1/8in x 12-1/8in, 8.5 x 6in, 10.5 x 8in, 12.5 x 10in
